Quick Release Brackets


Our quick-release billet mounting brackets are accepted by most race-sanctioning bodies and clubs. Flat surface mounts and dual clamp roll bar mounts combine with band clamps for 2.5 lb. fire extinguishers. Band clamps for 1.0 and 1.4 lb. fire extinguishers combine with flat surface mounts and single clamp roll bar mounts. Note: Clamps and mounts must be used together. First, choose the correct band clamp size, then choose a flat surface or a roll bar mount.




Note: Clamps and mounts must be used together. First, choose the correct band clamp size for your fire extinguisher, then choose a flat surface mount or a roll-bar mount. One year limited warranty

Billet Mounting Accessory (sold separately) Polished Finish For 1 & 1.4 lb extinguishers Brushed Finish for 2.5 lb extinguishers Polished Finish for 2.5 lb extinguishers Brushed Finish for 2.5 lb extinguishers
Band clamp BB100P BB100B BB250P BB250B
Flat Surface Mount BMF01P BMF01B BMF01P BMF01B
1 1/2" diameter roll bar mount BMR00P¹ BMR00B¹ BMR10P² BMR10B²
1 5/8" diameter roll bar mount BMR01P¹ BMR01B¹ BMR11P² BMR11B²
1 3/4" diameter roll bar mount BMR02P¹ BMR02B¹ BMR12P² BMR12B²
2" diameter roll bar mount BMR03P¹ BMR03B¹ BMR13P² BMR13B²
2 1/4" diameter roll bar mount BMR04P¹ BMR04B¹ BMR14P² BMR14B²

¹· Single clamp roll bar mount
²· Dual clamp roll bar mount

Roll Bar Fitment

Please measure the outside diameter of your roll bar with a caliper to ensure fitment. Our roll bar mounts are available in the following popular OEM roll bar sizes.

1 1⁄2" OEM roll bar
Redline Riot UTV
Yamaha Rhino UTV

1 5⁄8" OEM roll bar
Honda Big Red UTV

1 3⁄4" OEM roll bar
Arctic Cat Wildcat UTV
Polaris Ranger UTV
Polaris RZR UTV
Yamaha Rhino UTV

2 1⁄4" OEM roll bar
Jeep Wrangler JK (without padding)

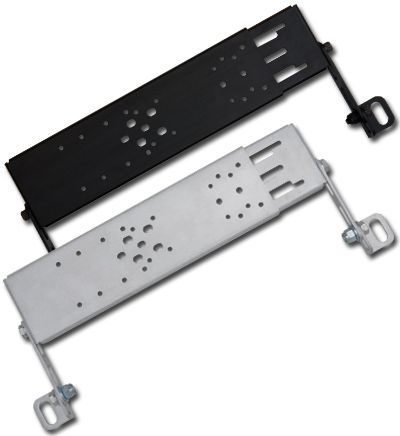

Universal Fire Extinguisher Seat Mounts

Our fully adjustable fire extinguisher seat mounts install easily in most vehicles, attaching to the seat rail bolts or above the slider of the driver or front passenger seats.* Not only does this put the extinguisher at your fingertips, but it avoids the need to drill mounting holes into your vehicle.

Available in lightweight, durable aluminum construction in black or brushed finishes, this product accepts all H3R Performance fire extinguisher billet, Extreme Duty and standard brackets for 1 lb. to 5 lb. extinguishers.

Model: SM01BK - Black Powder Coat Finish
Model: SM01BR - Brushed Finish

*Mounting to seat rail bolts may restrict forward seat motion on certain vehicles. Mounting to seat slider (where possible) maximizes range of seat movement.

DISCLAIMER: Always have a professional mechanic install and/or inspect installation of this product. H3R Performance, Inc. accepts no responsibility for the use, misuse or installation of this product.


Extreme Duty Quick Release Fire Extinguisher Brackets

Our fiberglass-reinforced nylon quick release brackets are designed to meet MIL SPEC 810G as well as to withstand inertia loads in excess of 27G in all directions. Made for extreme duty, they offer an exceptional mounting solution for off road and racing enthusiasts. One year limited warranty.

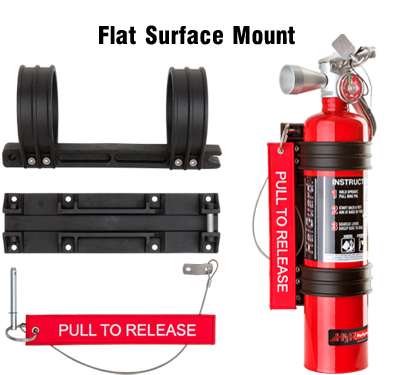

H3R Performance offers Extreme Duty brackets for mounting to flat surfaces or roll bars.

*Fire extinguisher sold separately

*Fire extinguisher sold separately

  • Model NB300 fits 3” diameter cylinders
    (fire extinguisher models MX250R/B/C & HG250R/B/C).
  • Model NB425 fits 4.25” diameter cylinders
    (fire extinguisher models MX500R/B/C & HG500R/B/C).

*Fire extinguisher sold separately

*Fire extinguisher sold separately

Roll Bar Diameter 1 5/8" 1 3/4"
For 2.5 lb. fire extinguishers (MX250R/B/C & HG250R/B/C) NBR301 NBR302
For 5.0 lb. fire extinguishers (MX500R/B/C & HG500R/B/C) NBR401 NBR402

View the Extreme Duty video!

DISCLAIMER: Always have a professional mechanic install and/or inspect installation of this product. H3R Performance, Inc. accepts no responsibility for the use, misuse or installation of this product.
